Product Model：

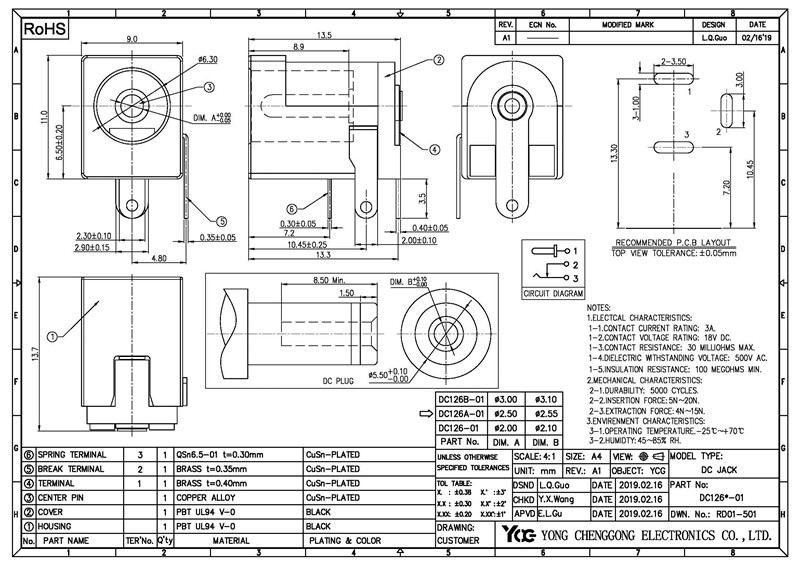

DC126 DC POWER JACK,φ2.00mm,φ2.50mm,φ3.00mm,R/A DIP
Product Category：
DC POWER JACK SERIES
Product Description：
DC POWER JACK,φ2.00mm,φ2.50mm,φ3.00mm,R/A DIP
Contact resistance：
≤30MΩ
Insulation resistance：
≥100MΩ
Dielectric withstanding voltage：
500V/AC
Oprating temperature：
-25℃~+85℃
Insertion and extraction force：
3N~30N
