Product Model：

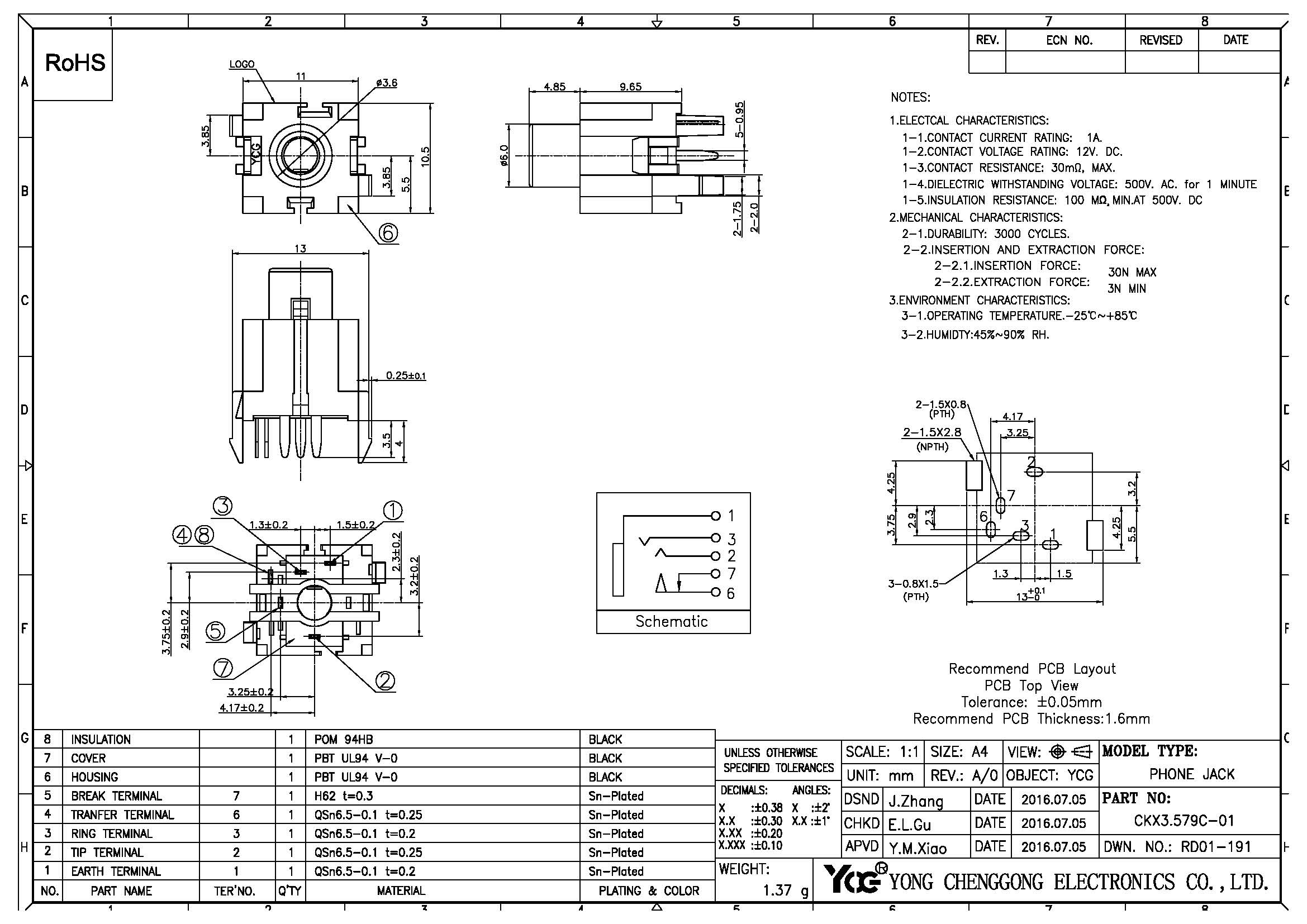

CKX3.579 PHONE JACK φ3.6mm,V/D,H9.65mm,4 Poles,BLACK
Product Category：
3.5PHONE JACK SERIES
Product Description：
PHONE JACK φ3.6mm,V/D,H9.65mm,4 Poles,BLACK
Contact resistance：
≤30MΩ
Insulation resistance：
≥100MΩ
Dielectric withstanding voltage：
500V/AC
Oprating temperature：
-25℃~+85℃
Insertion and extraction force：
3N~30N
